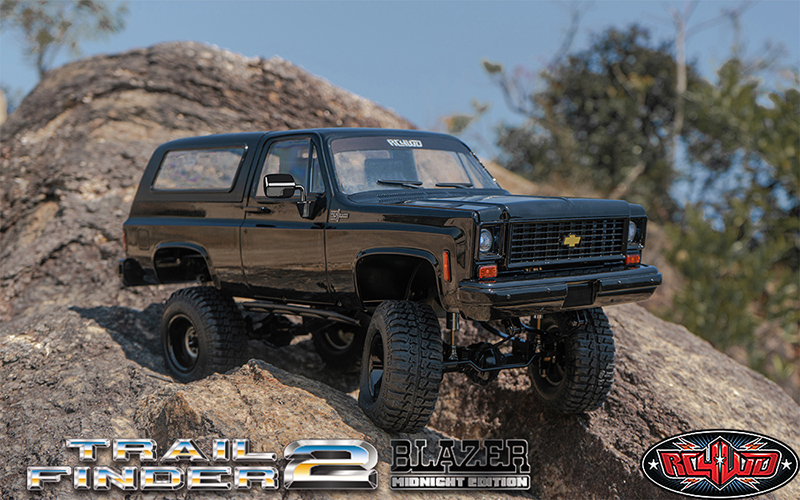

Ultimate scale is back, in black, with the sleek RC4WD Trail Finder 2 RTR w/ Chevrolet Blazer Body Set (Midnight Edition)!

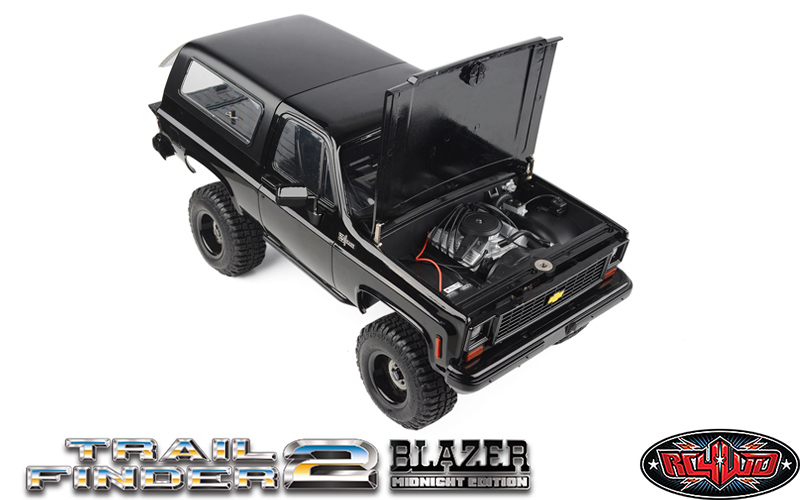

This RTR brings an all-black-everywhere approach, with the chrome finish from the trim and accessories blacked out, giving the Chevrolet Blazer a dark and classy appearance. The topper has a matte finish, contrasting the gloss black paint job of the blazer body! Underneath the opening hood, the engine bay has a dress-up kit, molded parts, and painted parts like the valve covers!
This model comes mounted to the popular Trail Finder 2 chassis with new and field-tested improvements! Trail-ready suspension parts come tuned out of the box, with the internal shock springs and helper leaf springs uninstalled, though included and available for personal tuning! the new rear shock towers allow for longer shocks and adjustable mounting positions, adding to the customization! the custom-painted rally wheels come wrapped in Dick Cepek Tires, ready to hit the trail in style! Own this model and experience this modern take on an American classic today!
Chevrolet Blazer Hard Body Complete Set (Black)
Chevrolet Blazer And K10 Chrome Grille (Black)
Small Block V8 Engine Bay w/ Dress Up Kit
Rally 1.9" Beadlock Wheels (Black)
Dick Cepek 1.9" Mud Country Scale Tires
K44 Ultimate Scale Cast Axles (XVD)
The Ultimate Scale Shocks (80mm) (Chrome)
Super Soft Flex Leaf Springs for Trail Finder 2
540 Crawler Brush Motor 45T
R3 Single Speed Transmission
Center Mounted Hammer Transfer Case
Twister High Torque Metal Gear Digital Servo
Outcry III Waterproof ESC
6-Cell 3000mAh NiMH Battery w/ XT60 Plug
Marlin Crawler Side Plastic Sliders For Trail Finder 2
Front Inner Fender Set for Chevrolet Blazer And K10 (Black)
XR3 3- Channel 2.4Ghz Transmitter / Receiver Radio
Universal NiMH Peak Battery Charger
Hammer Transfer Case
Ratio: 1.47:1
Gears: Wide .8 Mod Hardened Steel Gears
Features: 8 Bearings, Cast Casing, Hardened Gears
R3 Scale Single Speed Transmission
Ratios: Pinion/Spur 14/64 = 1:4.57
Internal Ratio: 1.78:1
Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch
K44 Ultimate Scale Cast Axles
Ratio: 2.67:1
Hex To Hex Width: 177mm (6.96")
Shock Absorbers
The Ultimate Scale Shocks (80mm) (Chrome)
Titanium Nitrate Coated Shock Shafts
New X-Ring Technology
Wheels
Type: Rally 1.9" Beadlock Wheels (Black)
Hub: 12mm Hex
Width: 33mm (1.29")
OD: 54mm (2.14")
Tires
Type: RC4WD Dick Cepek 1.9" Mud Country Scale Tires
Outer Diameter: 100mm (3.95")
Width: 38.9mm (1.53")
Inner Diameter: 48mm (1.9")
Trail Finder 2 Truck Dimensions
Wheelbase: 287mm (11.3")
Width: 221mm (8.7")
Height: 236.8mm (9.3")
Ground Clearance: 61.9mm (2.4")
Final Drive Ratio: 31.9:1
DRIVETRAIN
The R3 Single Speed Transmission comes with a tough cast metal case and wider gears for durability and a Delrin Spur with Slipper Clutch for performance. It also features a sturdy billet aluminum motor mount for added toughness.
The Trail Finder 2 Chassis includes the Hammer Transfer Case that features a cast metal exterior and heavy-duty .8 Mod Widened Gears, ensuring lasting functionality.
Drawing on the success of the RC4WD MOA Gear Sets, the Trail Finder 2 Chassis has the most durable gears RC4WD has to offer, capable of staying on the trail day after day.
The most scale-accurate axles on the market, the K44 Ultimate Scale Cast Axles feature high steer knuckles, XVDs, lower mounting points, and a compact offset front pumpkin.
The driveshafts found on the Trail Finder 2 Chassis feature heavy-duty uni-joint metal shafts for great driveline angles and durability on the trail.
SUSPENSION
The Trail Finder 2 Chassis has a multi-purpose, molded fuel cell that serves as an electronics storage box and provides additional RC realism by storing away any protruding wires.
The Trail Finder 2 Chassis includes Ultimate Scale Shocks 80mm (Chrome) with Internal Springs. These ultimate scale shock absorbers offer realistic looks and performance. They are machined from billet aluminum with internal springs and rebuildable internal parts!
With strength in mind, the ladder frame design of the Trail Finder 2 Chassis is made with CNC machined, billet aluminum and comes with scale shock hoops, a chassis servo mount, and transmission and transfer case mounts.
This truck includes a set of Rally 1.9" Beadlock Wheels (Black). The wheels are stamped steel and have a smooth black finish with a black finish beauty ring for extra detail.
Every RTR needs a tough set of tires to hit trails and the included Dick Cepek 1.9" Mud Country Scale Tires deliver the perfect amount of traction with its advanced X3 soft and sticky compound. The scale details complete the look in just the right size.
DETAILS
This RTR comes with a unique, custom-painted Chevrolet Blazer Hard Body that features an assortment of scale details including mirrors, door handles, and interchangeable grille options!
The body is constructed of durable hard plastic with a classic shape that replicates the full-size model with accuracy and authenticity.
With realism in mind, the body features a molded, realistic drop bed and an opening hood and tailgate. The masters of scale continue to deliver unmatched details!

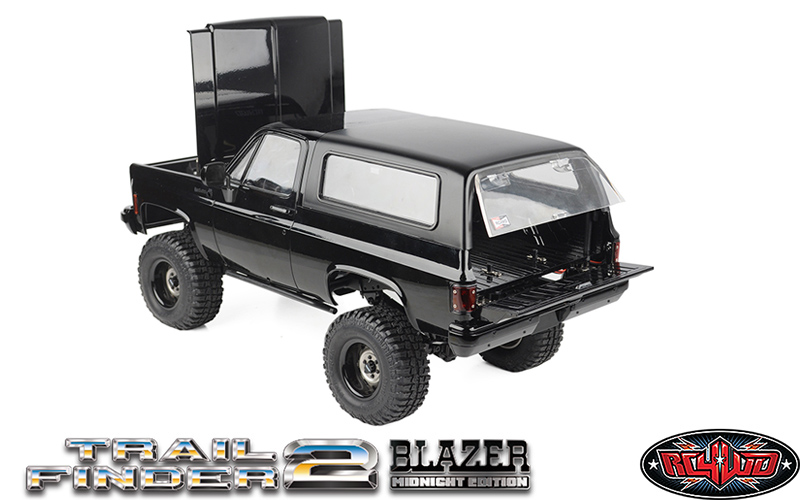

This model includes a removable matte topper that contrasts the glossy look of the body! Install or uninstall it for a style switch and hit the look of an open or enclosed Blazer!
Included are black finish parts and colored lenses for all signal lights! Typical chrome trimming now comes blacked out, adding to the eye-catching dark aesthetics of this RTR!
ELECTRONICS
Straight out of the box, an LED light set comes professionally installed and out of sight, keeping that realistic look.
The Trail Finder 2 Chassis is powered by the tough and durable RC4WD 45 Turn Crawler Motor. With long-lasting performance at its core, this power machine is tuned for rock climbing and scale driving!
Included is the popular RC4WD Outcry III Waterproof ESC Brushed Speed Controller, with built-in drag brake, for reliable constant power on demand at any time!
With a massive 277.6oz@6V of torque and a full metal geared drivetrain, the RC4WD Twister Metal Gear Digital Servo has the power and performance needed to outmaneuver and overcome tough terrain.
It's ALL in the box! Everything you need is provided to get you on the trails today!
What's Included:
- 1x RC4WD Trail Finder 2 RTR w/Chevrolet Blazer Body Set (Midnight Edition)
Replacements Parts:
Optional Parts:
Instruction Manual:
Press Information:
Notes:
- Please note that these truck bodies are hand-painted, so minor blemishes, differences, or imperfections may occur
- While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
- Use good quality hex drivers to avoid stripping screw heads.
- Use thread lock when putting metal screws into metal parts.
- Steps marked with an asterisk (*) require thread lock.
- Use thread lock sparingly.
- Do not over tighten screws otherwise you may strip the thread.
