The Trail Finder 2 masterfully blends style with aggressive
off-road performance. Designed to deliver both scale detail and powerful
functionality, it features an R3 Scale Single Speed transmission, 4WD
drivetrain, a rugged Bulletproof Transfer Case, and durable metal
components for unmatched smoothness and control. Upgraded XVD front
axles enhance durability and offer a superior steering angle compared to
standard models. A testament to innovative engineering, the Trail
Finder 2 stands out with its impressive looks and performance
capabilities. Additionally, it offers extensive compatibility with a
wide range of upgrades and performance enhancements, elevating the
authenticity and user experience of this 1/10-scale off-road truck.
Realistic Billet Aluminum Ladder Frame Chassis
R3 Scale Single Speed Transmission
Center Mounted Hammer Transfer Case
Yota II Ultimate Scale Cast Axles V2 with XVD's
The Ultimate Scale Shocks (60/80mm)
Marlin Crawler Side Plastic Sliders V2
Marlin Crawler Front Winch Bumper w/Stinger V2
Rear Plastic Tube Bumper
Super Soft Flex Leaf Springs
Hammer Transfer Case
Ratio: 1.47:1
Gears: Wide .8 Mod Steel Gears
Features: 8 Bearings, Cast Casing, Hardened Gears
R3 Scale Single Speed Transmission
Ratios: Pinion/Spur 14/64 = 1:4.57
Internal Ratio: 1.78:1
Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch
Yota II Ultimate Scale Cast Axles
Ratio: 15/40 = 2.67:1
Width at Hex: 178.2mm (7.01")
Trail Finder 2 Chassis
Features: Billet Aluminum Construction, Adjustable Shock Hoops
Drive Shafts
High Quality Plastic Material, Durable Steel Yokes
Trail Finder 2 Truck Dimensions
Wheelbase: 287mm (11.2")
Width: 196mm (7.7")
Height: 148mm(5.8")
Final Drive Ratios: 31.9:1

DRIVETRAIN
The R3
Single Speed Transmission comes with a tough cast metal case and wider
gears for durability and a Delrin Spur with Slipper Clutch for
performance. It also features a sturdy billet aluminum motor mount for
added toughness.
The Trail Finder 2 Chassis
includes the Hammer Transfer Case that features a cast metal exterior
and heavy-duty .8 Mod Widened Gears, ensuring lasting functionality.
Drawing
on the success of the RC4WD MOA Gear Sets, the Trail Finder 2 Chassis
has the most durable gears RC4WD has to offer, capable of staying on the
trail day after day.
The most scale accurate
axles on the market, the RC4WD Yota II Ultimate Scale Cast Axles (XVD)
feature innovative 8 degree round knuckles, unique removable diff
covers, lower mounting points and a compact offset pumpkin in the front.
The
driveshafts found on the Trail Finder 2 Chassis feature heavy-duty
uni-joint metal shafts for great driveline angles and durability on the
trail.







SUSPENSION
The axles are now
designed to accommodate leaf springs in two configurations: Over the
axle for an off-road appearance and under the axle for a street look.
This dual design eliminates the need to flip the axle, providing ease of
use.
The Trail Finder 2 Chassis includes a set
of RC4WD Ultimate Scale Shocks. These ultimate scale shock absorbers
offer realistic looks and performance. They are machined from billet
aluminum with internal springs and rebuildable internal parts!
With
strength in mind, the ladder frame design of the Trail Finder 2 Chassis
is made with CNC machined, billet aluminum and comes with scale shock
hoops, a chassis servo mount, and transmission and transfer case mounts.
Soft
Steel Leaf Springs are constructed from high-quality material to reduce
stiction. The unique sizing for this set is designed for a more finely
tuned ride.
The RC4WD Marlin Crawler Side
Plastic Sliders for Trail Finder 2 V2 are scale replicas designed to
protect and mitigate the rough impacts of crawling over rocky terrain
and trails!

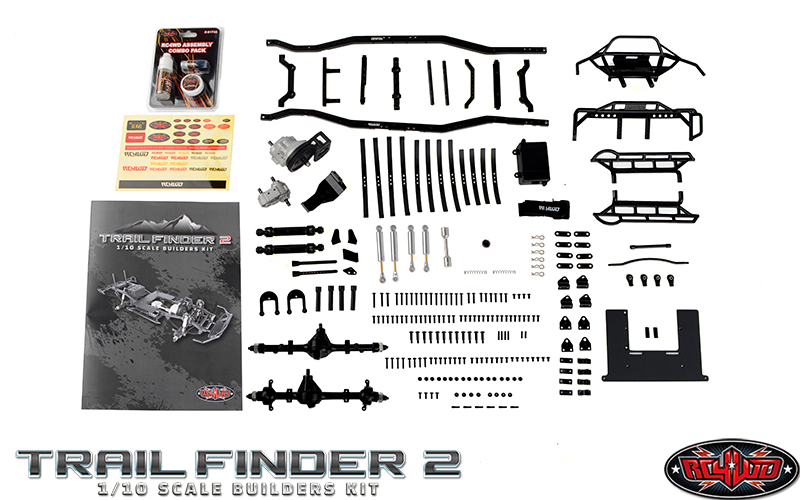

What's Included:
- 1x RC4WD Trail Finder 2 Truck 1/10 Scale Builders Kit
This is a kit that requires building time (appro. 2-3 hours), electronics, tires and wheels.
Required to Complete:
Truck Kit
- Hex Drivers (1.5mm, 2mm, 2.5mm)
- Long Nose Pliers
- Associated Thread Locking Adhesive
- Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)
Electronics
Suggested Bodies
Replacements Parts:
Optional Parts:
Instruction Manuals:
Press Information:
Notes:
- While
some components may come assembled, we always recommend that you check
the products to ensure all hardware is tight. In some cases, you may
want to apply thread lock to some of the hardware that is already
installed.
- Use good quality hex drivers to avoid stripping screw heads.
- Use thread lock sparingly.
- Do not over tighten screws, otherwise you may strip the thread.
