RC4WD Ultimate Scale Shocks 70mm

Write a Review

Your Price: $30.99

Retail Price:$38.12

Your Savings:$7.13(19%)

See more at rc4wd.com

Part Number: Z-D0087

Availability: In stock

Quantity

Description

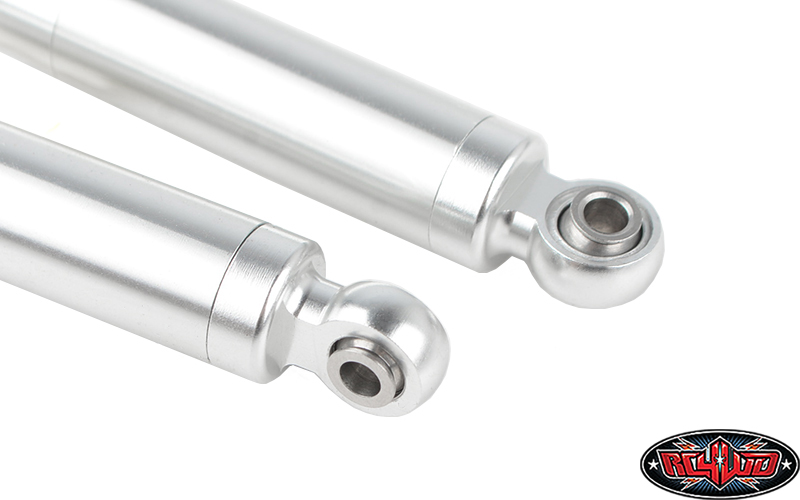

RC4WD Ultimate Scale Shocks 70mm

These shock feature our new X-ring technology that reduces contact friction for smooth shock shaft movement while improving oil retention around the shock shaft.

Specifications:

CNC Machined
Billet Aluminum
Silver Anodized Finish
Internal Spring Design
Steel Rod End Ball
X-ring Gaskets
Titanium Nitride Coated Shock Shafts
Hole to Hole (Compressed): 2.17in / 55.2mm
Hole to Hole (Uncompressed): 2.76in / 70mm
Overall Length: 3.10in / 78.74mm
Travel Length: 0.58in / 14.8mm
Shock Body OD: 0.39in / 10.0mm
Shaft OD: 0.11in / 3.00mm
Each Shock Weighs: 0.34oz / 9.9g

Shown installed on RC4WD Trail Finder 2 RTR w/1982 Toyota Pickup Hard Body Set (Blue) (Z-RTR0069) with RC4WD Double Steel Tube Roll Bar for 1982 Toyota Pickup/Mojave II (Chrome) (Z-S0180), RC4WD KC HiLiTES Daylighter Light Set V2 (Z-E0022), Metal Exhaust for Mojave II 2/4 Door Body Set (VVV-C0428), RC4WD ARB Diff Cover For The Yota II Axle (Red) (Z-S1295), RC4WD Teraflex Revolver Shackle (Z-S1594), Anti Wrap Bar for Trail Finder 2 (Z-S0782), Trail Finder 2 Aluminum Side Body Posts (Z-S1882), Shock Hoops for Trail Finder 2 Chassis (Z-S0597), Tough Armor Side Steel Sliders for Trail Finder 2 (Z-S0056), Low Profile Delrin Transfer Case Mount for TF2 (Z-S1777), Rear Mud Flaps for Mojave II 2/4 Door Body Set (VVV-C0429), RC4WD Adjustable Drop Hitch (Short) (Z-S1095), RC4WD American Racing 1.9" Outlaw II Deep Dish Beadlock Wheels (Z-W0088) and RC4WD BFGoodrich Krawler T/A KX 1.7" Scale Tires (Z-T0189) for example (Not Included)

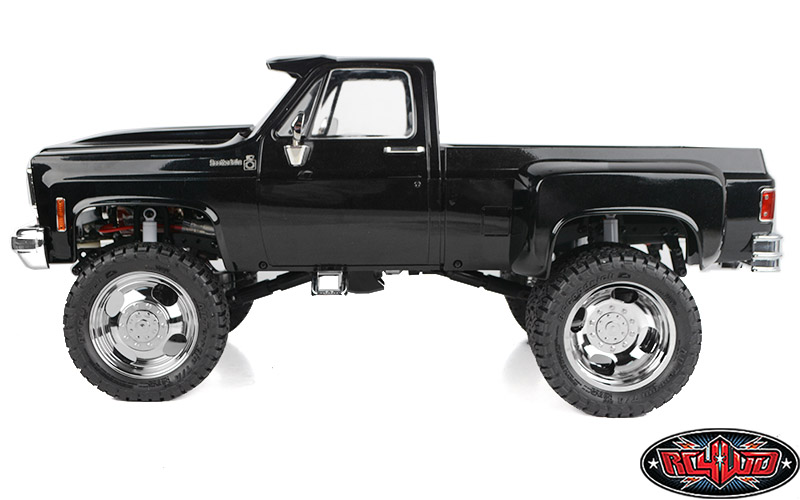

Shown and installed on RC4WD Trail Finder 2 "LWB" RTR W/ Chevrolet K10 Scottsdale Hard Body Set (Black) (Z-RTR0067) with RC4WD Hauler 2.6" Front Wheels (Z-W0106), RC4WD Hauler 2.6" Dually Rear Wheels (Z-W0120), RC4WD BFGoodrich All-Terrain T/A KO3 2.6" Scale Tires (Z-T0106), RC4WD Chevrolet Blazer and K10 Chrome Mirror (Z-B0021), RC4WD Cowl Hood for Chevrolet Blazer and K10 (Z-X0004), RC4WD Dually Fenders for Chevrolet K10 (Z-X0006) (Painted Black), RC4WD Windshield Sun Visor for Chevrolet Blazer and K10 V2 (Z-S0266), Front Inner Fender Set for RC4WD Chevrolet Blazer and K10 (VVV-C1472), Front Bumper Guards for RC4WD Chevrolet Blazer and K10 (VVV-C1475), RC4WD Chevrolet K10 Chrome Rear Step Bumper (Z-B0023), RC4WD Poison Spyder Bombshell Diff Cover for Cast K44 Axle (Z-S1847) and RC4WD Side Steps for the Chevrolet K10/Blazer (Chrome) (Z-S0109) for example (Not Included)

What's Included:

2x RC4WD Ultimate Scale Shocks 70mm

Optional Parts:

Super Scale Shock Boot (Black) (Z-S0891)
Super Scale Shock Boot (Red) (Z-S0948)
Super Scale Shock Boot (Yellow) (Z-S0962)
Super Scale Shock Boot (Blue) (Z-S0961)

Other Sizes:

RC4WD Ultimate Scale Shocks 60mm (Z-D0086)
RC4WD Ultimate Scale Shocks 80mm (Z-D0088)
RC4WD Ultimate Scale Shocks 90mm (Z-D0089)

Notes:

Fits RC4WD Trail Finder 2 Truck Kit "SWB" (Z-K0045)
Fits RC4WD Trail Finder 2 "LWB" 1/10 Scale Builders Kit (Z-K0065)
Fits RC4WD Trail Finder 2 Truck 1/10 Scale Builders Kit (Z-K0069)
Fits RC4WD Trail Finder 2 Truck Kit w/1982 Toyota Pickup Hard Body Complete Set (Z-K0070)
Fits RC4WD Trail Finder 2 RTR w/1985 Toyota 4Runner Hard Body Set (Red) (Z-RTR0063)
Fits RC4WD Trail Finder 2 "LWB" RTR w/ 1987 Toyota XtraCab Hard Body Set (White) (Z-RTR0064)
Fits RC4WD Trail Finder 2 "LWB" RTR W/ Chevrolet K10 Scottsdale Hard Body Set (Black) (Z-RTR0067)
Fits RC4WD Trail Finder 2 RTR w/Chevrolet Blazer Body Set (Midnight Edition) (Z-RTR0068)
Fits RC4WD Trail Finder 2 RTR w/1982 Toyota Pickup Hard Body Set (Blue) (Z-RTR0069)
Fits RC4WD Trail Finder 2 RTR w/1982 Toyota Pickup Hard Body Set (Red) (Z-RTR0070)
Use blue (medium) thread lock to the bottom shock shaft rod end before installing onto your vehicle to help keep it in place.
The new X-ring shocks are designed to be oil filled for smooth damping.
