RC4WD Trail Finder 2 1/10 Scale Builders Kit (K44)

Existing list:

New list:

RC4WD Trail Finder 2 1/10 Scale Builders Kit (K44)

Write a Review

Your Price: $349.99

Retail Price:$430.49

Your Savings:$80.50(19%)

See more at rc4wd.com

Part Number: Z-K0074

Availability: In stock

Quantity

Description

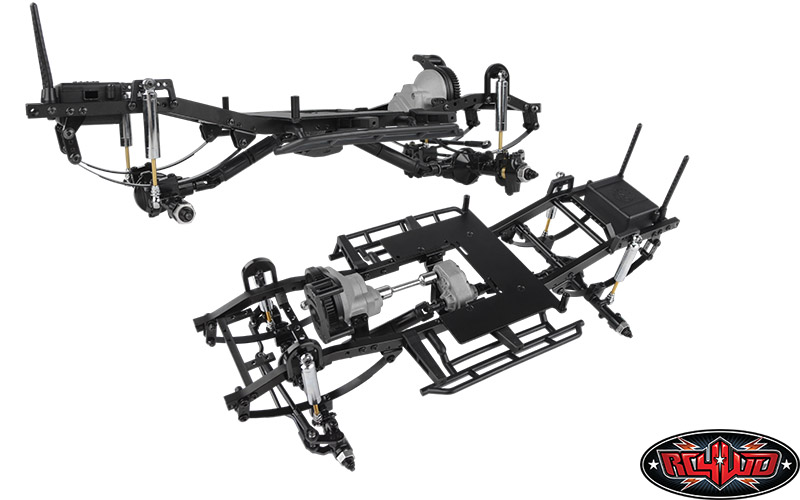

RC4WD Trail Finder 2 1/10 Scale Builders Kit (K44)

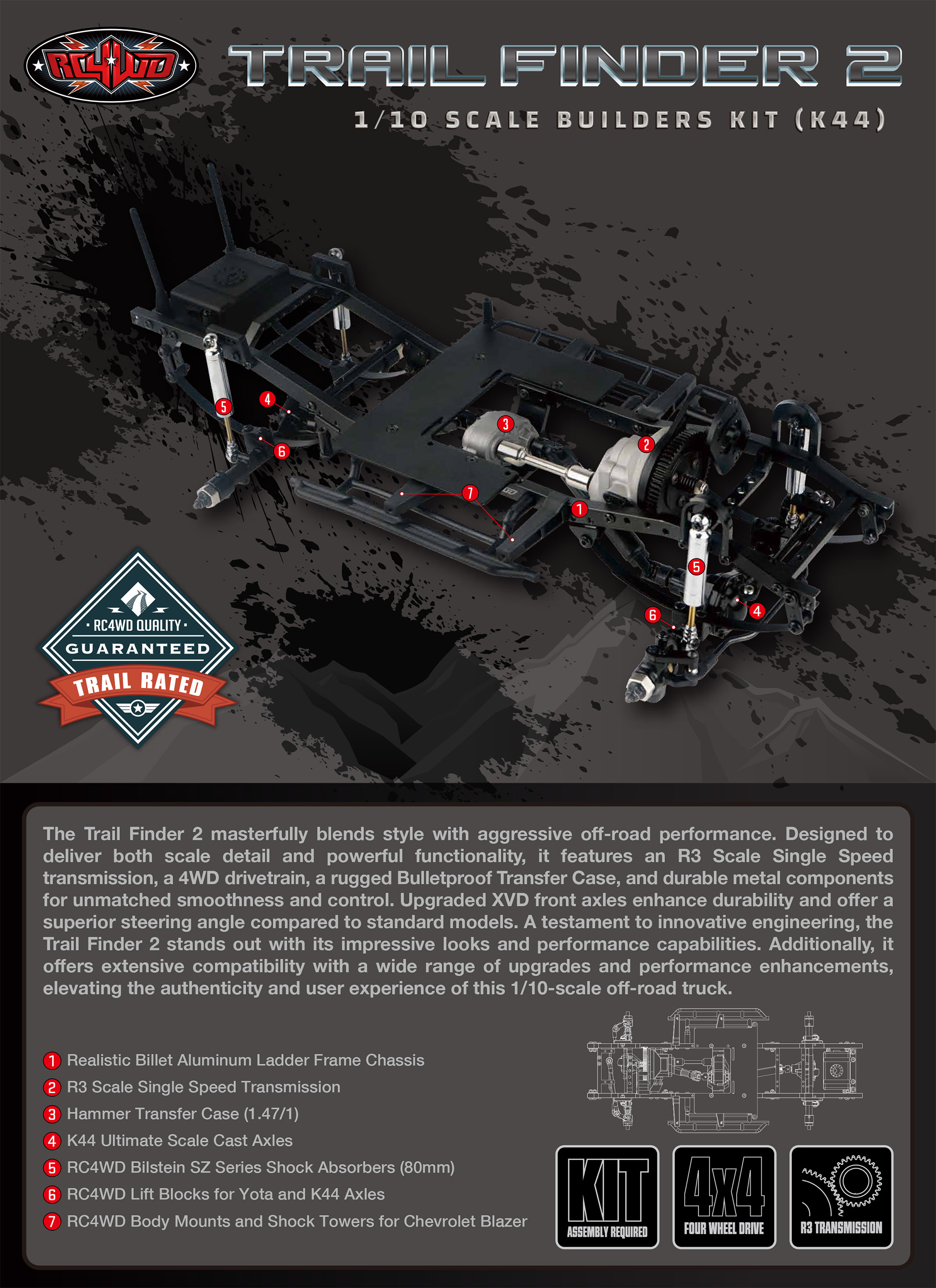

The Trail Finder 2 masterfully blends style with aggressive off-road performance. Designed to deliver both scale detail and powerful functionality, it features an R3 Scale Single Speed transmission, a 4WD drivetrain, a rugged Bulletproof Transfer Case, and durable metal components for unmatched smoothness and control. Upgraded XVD front axles enhance durability and offer a superior steering angle compared to standard models. A testament to innovative engineering, the Trail Finder 2 stands out with its impressive looks and performance capabilities. Additionally, it offers extensive compatibility with a wide range of upgrades and performance enhancements, elevating the authenticity and user experience of this 1/10-scale off-road truck.

Realistic Billet Aluminum Ladder Frame Chassis

R3 Scale Single Speed Transmission

Hammer Transfer Case (1.47/1)

K44 Ultimate Scale Cast Axles

RC4WD Bilstein SZ Series Shock Absorbers (80mm)

RC4WD Lift Blocks for Yota and K44 Axles

RC4WD Body Mounts and Shock Towers for Chevrolet Blazer

Hammer Transfer Case

Ratio: 1.47:1

Gears: Wide .8 Mod Steel Gears

Features: 8 Bearings, Cast Casing, Hardened Gears

R3 Scale Single Speed Transmission

Ratios: Pinion/Spur 14/64 = 1:4.57

Internal Ratio: 1.78:1

Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch

K44 Ultimate Scale Cast Axles

Ratio: 2.67:1

Width at Hex: 177mm (6.96")

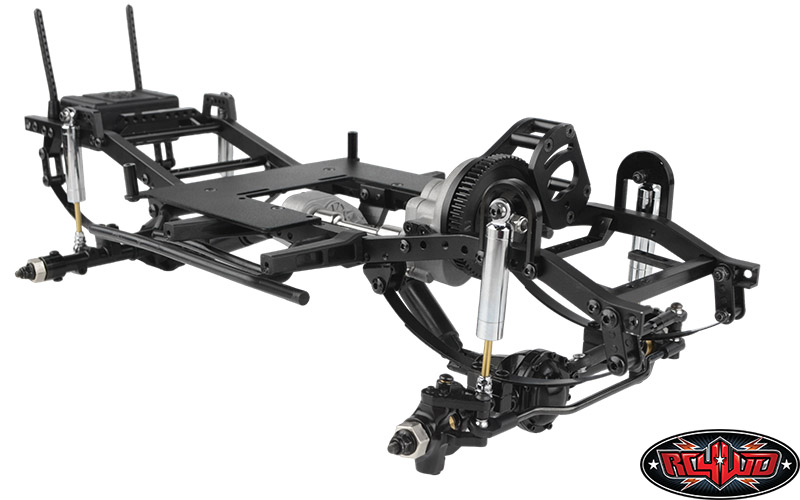

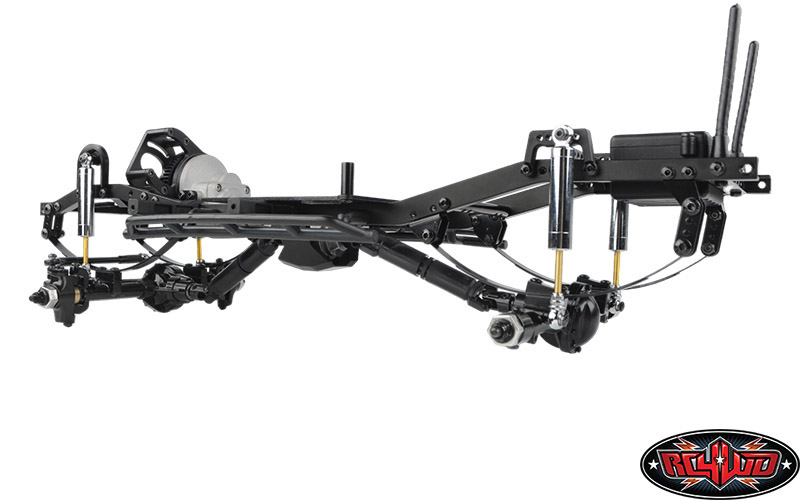

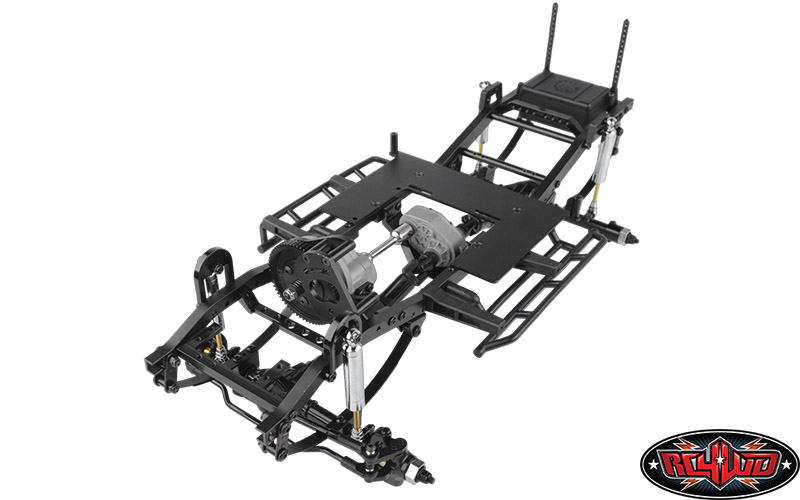

Trail Finder 2 Chassis

Features: Billet Aluminum Construction, Adjustable Shock Hoops

Drive Shafts

High Quality Plastic Material, Durable Steel Yokes

Trail Finder 2 Truck Dimensions

Wheelbase: 285mm (11.2")

Width: 196mm (7.7")

Height: 148mm(5.8")

Final Drive Ratios: 31.9:1

DRIVETRAIN

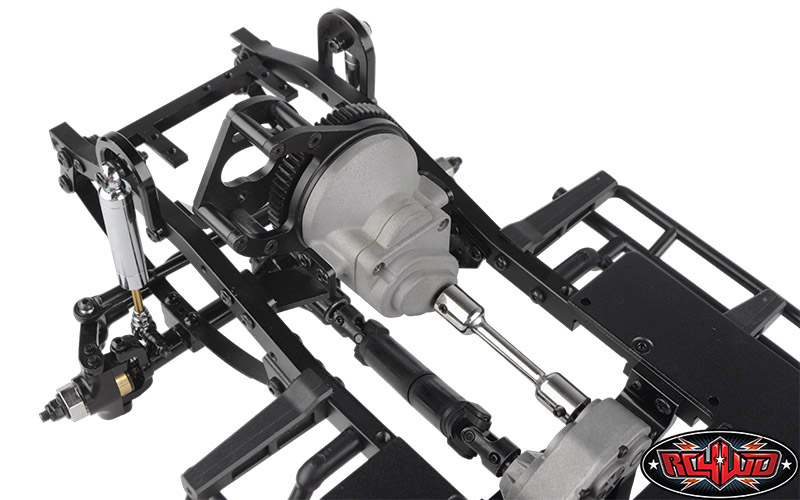

The R3 Single Speed Transmission comes with a tough cast metal case and wider gears for durability and a Delrin Spur with Slipper Clutch for performance. It also features a sturdy billet aluminum motor mount for added toughness.

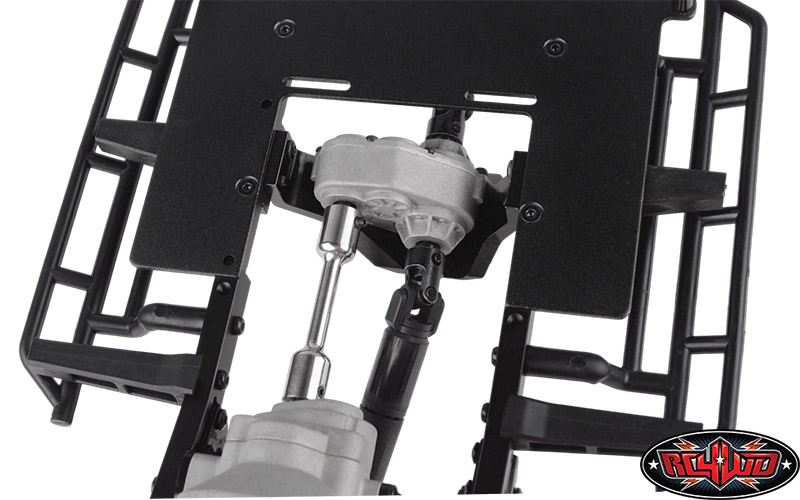

The Trail Finder 2 Chassis includes the Hammer Transfer Case that features a cast metal exterior and heavy-duty .8 Mod Widened Gears, ensuring lasting functionality.

Drawing on the success of the RC4WD MOA Gear Sets, the Trail Finder 2 Chassis has the most durable gears RC4WD has to offer, capable of staying on the trail day after day.

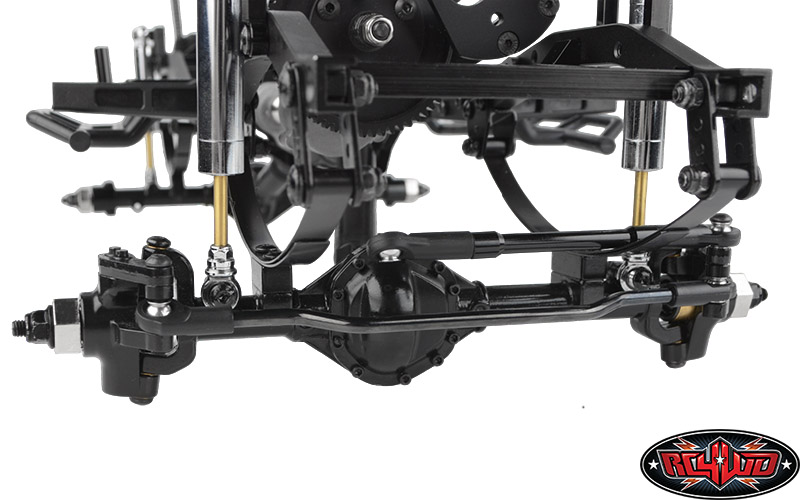

The most scale-accurate axles in the market, the RC4WD K44 Ultimate Scale Cast Axles feature innovative high steer knuckles, lower mounting points, compact pumpkins, as well as XVDs & offset pumpkin for the front.

The driveshafts found on the Trail Finder 2 Chassis feature heavy-duty uni-joint metal shafts for great driveline angles and durability on the trail.

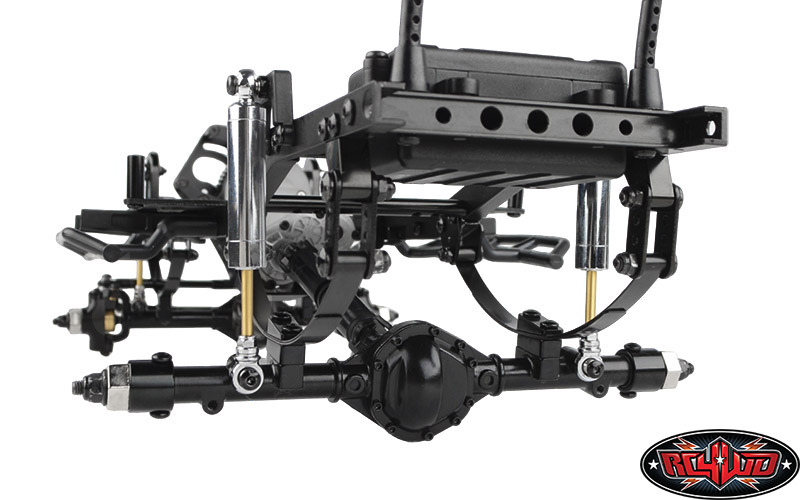

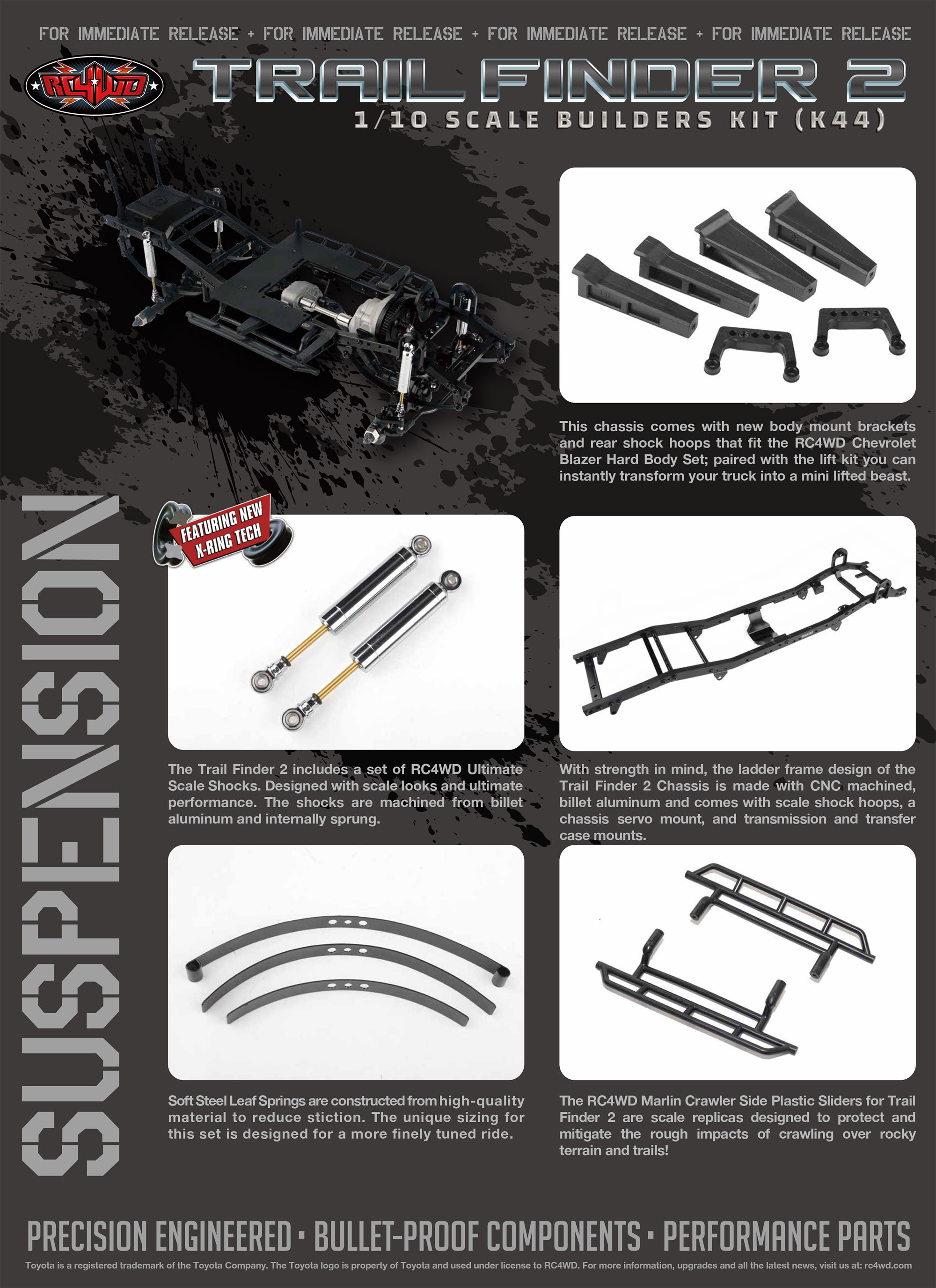

SUSPENSION

This chassis comes with new body mount brackets and rear shock hoops that fit the RC4WD Chevrolet Blazer Hard Body Set; paired with the lift kit you can instantly transform your truck into a mini lifted beast.

The Trail Finder 2 includes a set of RC4WD Ultimate Scale Shocks. Designed with scale looks and ultimate performance. The shocks are machined from billet aluminum and internally sprung.

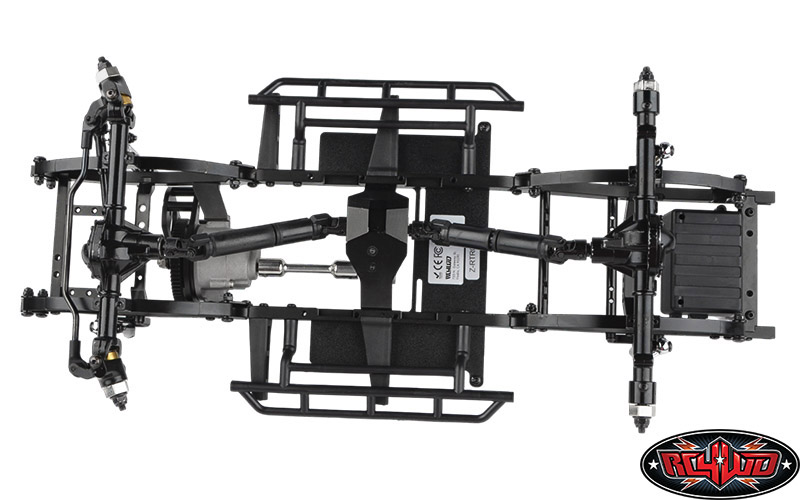

With strength in mind, the ladder frame design of the Trail Finder 2 Chassis is made with CNC machined, billet aluminum and comes with scale shock hoops, a chassis servo mount, and transmission and transfer case mounts.

Soft Steel Leaf Springs are constructed from high-quality material to reduce stiction. The unique sizing for this set is designed for a more finely tuned ride.

The RC4WD Marlin Crawler Side Plastic Sliders for Trail Finder 2 are scale replicas designed to protect and mitigate the rough impacts of crawling over rocky terrain and trails!

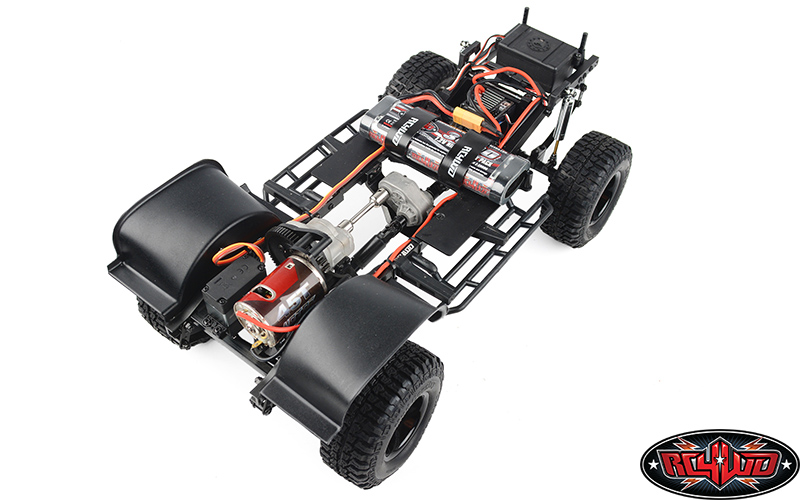

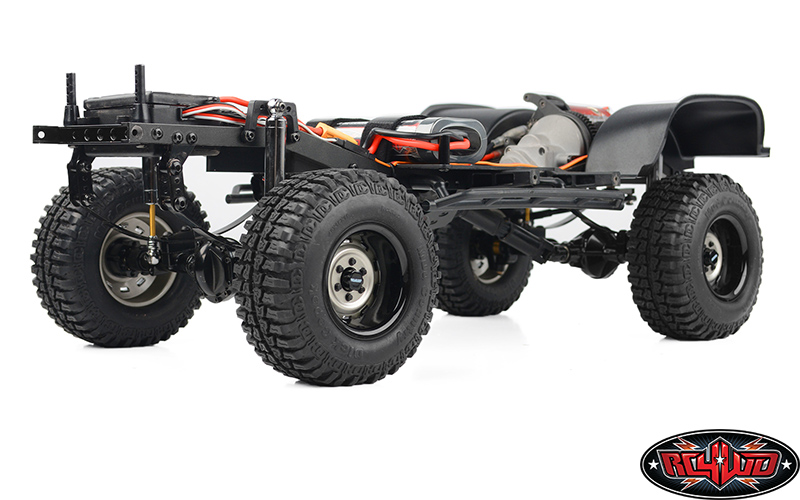

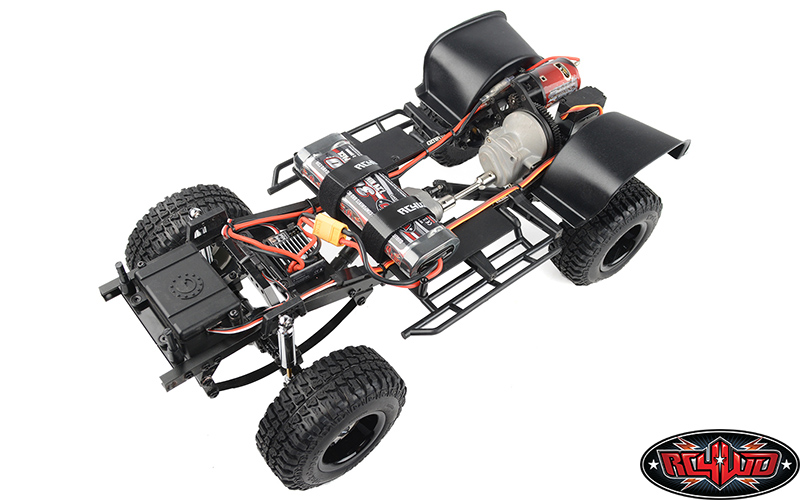

Shown installed with 540 Crawler Brushed Motor 45T (Z-E0004), Twister High Torque Metal Gear Digital Servo (Z-E0035), RC4WD 6-Cell 3000mAh NiMH Battery Pack (Z-E0090), Outcry III Waterproof ESC (Z-E0113), RC4WD Dick Cepek 1.9" Mud Country Scale Tires (Z-T0034) and RC4WD Chevrolet Blazer Hard Body Complete Set (Z-B0092) for example (Not Included)

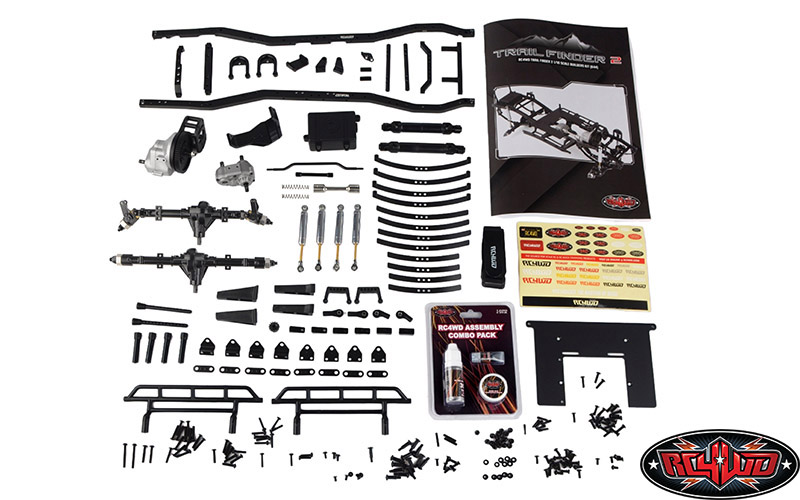

What's Included:

1x RC4WD Trail Finder 2 1/10 Scale Builders Kit (K44)

This is a kit that requires building time (appro. 2-3 hours), electronics, tires and wheels.

Required to Complete:

Truck Kit

Hex Drivers (1.5mm, 2mm, 2.5mm)
Long Nose Pliers
Associated Thread Locking Adhesive
Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)

Electronics

Motor (35t, 45t, or 55t)
Radio and Receiver (3 Channels or more) (3 Channel Z-R0009, or 4 Channel Z-R0006)
1x Twister High Torque Metal Gear Digital Servo (Z-E0035)
Battery (Consult your "ESC" manual) Z-E0090 or Lipo battery
Charger (Consult your battery guide) Chargers

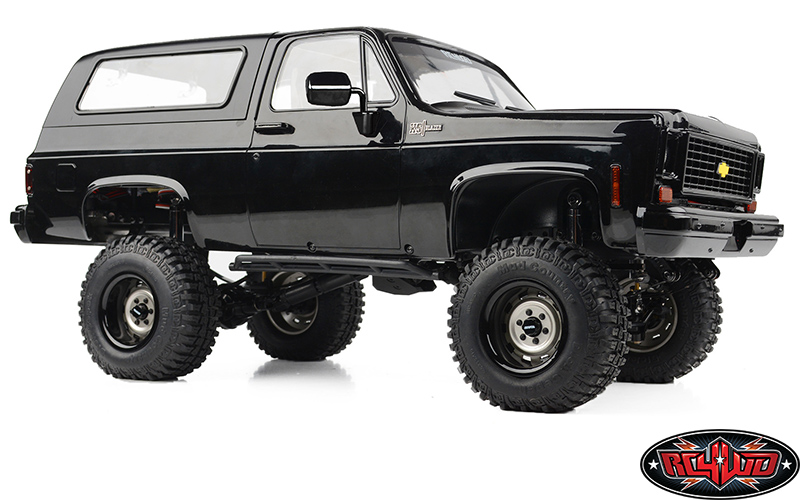

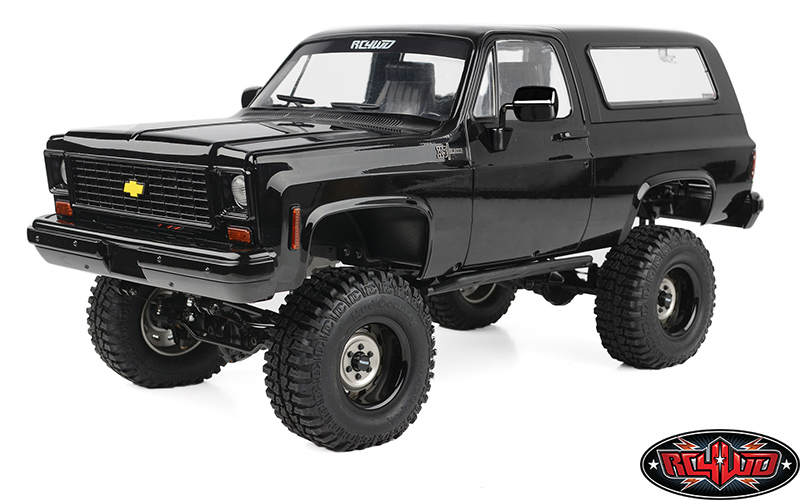

Suggested Bodies

RC4WD Chevrolet Blazer Hard Body Complete Set (Z-B0092)
RC4WD 1982 Toyota Pickup Hard Body Complete Set (Z-B0257)

Replacements Parts:

K44 Ultimate Scale Cast Rear Axle (Z-A0096)
K44 Ultimate Scale Cast Front Axle (Z-A0101)
Trail Finder 2 Plastic Body Posts (Z-B0029)
Trail Finder 2 Chassis Set (Z-C0018)
RC4WD Bilstein SZ Series Shock Absorbers (80mm) (Z-D0058)
RC4WD Lift Blocks for Yota and K44 Axles (Z-S0011)
RC4WD Body Mounts and Shock Towers for Chevrolet Blazer (Z-S0199)
M3 Medium Straight Plastic Rod End (20x) (Z-S0399)
M3 Offset Short Plastic Rod End (20x) (Z-S0401)
RC4WD 105mm Hardened Steering Link V2 (Z-S0461)
Heavy Duty Nylon Strap Lock (5) (Z-S0552)
Fuel Cell Radio Box (Z-S0592)
RC4WD Marlin Crawler Side Plastic Sliders for Trail Finder 2 (Z-S0596)
Shock Hoops for Trail Finder 2 Chassis (Z-S0597)
Transfer Case mount for Trail Finder 2 Chassis (Z-S0598)
Electronics Top Plate w/Servo Mounts For Trail Finder 2 (Z-S0678)
R3 Single Speed Transmission Mounts (Z-S0802)
TF2 Long Drive Shaft Coupling for R3 Single Speed (Z-S0898)
RC4WD Assembly Combo Pack (Oil, Thread Lock, Grease) (Z-S1732)
Super Soft Flex Leaf Springs for TF2 (4) (Z-S1815)
RC4WD Plastic Punisher Shaft V2 (102mm-110mm / 4.02" - 4.33") 5mm Hole (Z-S2020)
RC4WD Plastic Punisher Shaft V2 (110mm - 115mm / 4.33" - 4.52") 5mm Hole (Z-S2143)
Hammer Transfer Case (1.47/1) (Z-U0024)
R3 Scale Single Speed Transmission (Z-U0028)

Optional Parts:

RC4WD Yota II Ultimate Scale Cast Front Axle V2 (Chrome) (Z-A0071)
RC4WD Yota II Ultimate Scale Cast Rear Axle (Chrome) (Z-A0072)
RC4WD Yota II Ultimate Scale Cast Axle V2 (Front) (Z-A0080)
Yota II Ultimate Scale Cast Axle (Rear) (Z-A0081)
RC4WD Chevrolet Blazer Hard Body Complete Set (Z-B0092)
RC4WD Chevrolet Blazer Hard Body Complete Set (Navy/Blue) (Z-B0272)
RC4WD Chevrolet Blazer Hard Body Complete Set (Silver/Warm Grey) (Z-B0273)
RC4WD Old Man Emu Nitrocharger Sport Shocks by ARB (80mm) (Z-D0003)
RC4WD Superlift Superide 80mm Scale Shock Absorbers (Z-D0012)
RC4WD Rancho RS9000 XL Shock Absorbers (80mm) (V2) (Z-D0013)
RC4WD Superlift Superide Scale Shock Absorbers 80mm (Z-D0024)
RC4WD Bilstein B6 4600 Series Shock Absorbers (80mm) (Z-D0044)
RC4WD Ultimate Scale Shocks 80mm (Z-D0088)
540 Crawler Brushed Motor 80T (Z-E0001)
540 Crawler Brushed Motor 65T (Z-E0002)
540 Crawler Brushed Motor 55T (Z-E0003)
540 Crawler Brushed Motor 45T (Z-E0004)
540 Crawler Brushed Motor 35T (Z-E0005)
Twister High Torque Metal Gear Digital Servo (Z-E0035)
RC4WD Brushed 45T Boost Rebuildable Crawler 540 Motor (Z-E0041)
RC4WD Brushed 35T Boost Rebuildable Crawler 540 Motor (Z-E0045)
540 Crawler Brushed Motor 20T (Z-E0065)
540 Crawler Brushed Motor 27T (Z-E0067)
RC4WD 1/8 Warn Zeon 10 Winch (Z-E0069)
RC4WD 6-Cell 3000mAh NIMH Battery Pack (Z-E0090)
Outcry III Waterproof ESC (Z-E0113)
Twister Extreme Hi-Voltage Coreless Metal Gear Digital Waterproof Servo (Z-E0125)
Helical Gear Set for 1/10 Yota and K44 Axles (Z-G0059)
XR4 4-Channel 2.4Ghz Transmitter/Receiver Radio (Z-R0006)
XR3 3-Channel 2.4Ghz Transmitter/Receiver Radio (Z-R0009)
#3 Aluminum Bumper Mount For Trail Finder 2 (Z-S0003)
#2 Aluminum Bumper Mount for Trail Finder 2 (Z-S0004)
#1 Aluminum Bumper Mount For Trail Finder 2 (Z-S0006)
Tough Armor Side Steel Sliders for Trail Finder 2 (Z-S0056)
RC4WD Side Steps for the Chevrolet K10/Blazer (Chrome) (Z-S0109)
Scale Aisin/Yota Style Hubs (Z-S0196)
RC4WD Aluminum Diff Cover for K44 Cast Axle (Z-S0212)
RC4WD 12mm Mini Hex Wheel Widener Set (+15mm) (Z-S0407)
Soft Steel Leaf Springs for Trail Finder 2 (Z-S0518)
3 Link Kit For Trail Finder 2 Front Axle w/Panhard Setup (Z-S0565)
Red Super Soft Flex Leaf Springs (4) (Z-S0570)
4 Link Kit For Trail Finder 2 Rear Axle (Z-S0603)
RC4WD Marlin Crawler Side Metal Sliders for Trail Finder 2 (Z-S0753)
RC4WD Adjustable Rear Shock Mounts for Trail Finder 2 (Z-S0768)
Anti Wrap Bar for Trail Finder 2 (Z-S0782)
Heavy Duty Metal Servo Arm 25t Futaba (Z-S0822)
RC4WD Ultra Soft Leaf Springs for Trail Finder 2 (Z-S0840)
RC4WD 1/10 V8 Scale Engine (Z-S1043)
Scale Steel Punisher Shaft V2 (90mm - 115mm / 3.54'' - 4.53'') (Z-S1118)
RC4WD Billet Aluminum Fuel Cell Radio Box (Red) (Z-S1122)
Super Scale Steel Leaf Springs for TF2 & Tamiya Bruiser (2) (Z-S1476)
RC4WD Teraflex Revolver Z-Box for Trail Finder, F-350, Hilux, Tundra (Z-S1587)
RC4WD Teraflex Revolver Shackle (Z-S1594)
Motor Mount for R4 Transmission (Z-S1627)
Front Inner Fender Set for Chevrolet Blazer and K10 (Z-S1729)
Low Profile Delrin Transfer Case Mount for TF2 (Z-S1777)
RC4WD 12mm Hex Wheel Widener Set (+7mm) (Z-S1825)
RC4WD ARB Diff Cover for K44 Cast Axle (Z-S1839)
RC4WD Poison Spyder Bombshell Diff Cover for Cast K44 Axle (Z-S1847)
Low Profile Delrin Skid Plate for Std. TC (TF2) (Z-S1851)
Reverse Mount Spring Hanger Conversion Kit for TF2 and TF2 LWB (Z-S1923)
RC4WD Rancho Adjustable Steering Stabilizer (70-100mm) (Z-S1949)
Leaf Under Mounts for Yota 2 / K44 Axles (Z-S2135)
Mud Thrashers 1.9" Scale Tires (Z-T0051)
RC4WD BFGoodrich All Terrain K02 1.7” Scale Tires (Z-T0107)
Scrambler Offroad 1.55" Scale Tires (Z-T0152)
RC4WD Goodyear Wrangler Duratrac 1.55" 4.19" Scale Tires (Z-T0177)
RC4WD Falken Wildpeak M/T 1.7" Tires (Z-T0179)
RC4WD BFGoodrich Krawler T/A KX 1.7" Scale Tires (Z-T0189)
RC4WD BFGoodrich Mud Terrain T/A KM2 1.55" Scale Tires (Z-T0190)
RC4WD BFGoodrich Mud Terrain T/A KM3 1.7" Tires (Z-T0191)
RC4WD BFGoodrich Mud Terrain T/A KM3 1.9" Tires (Z-T0192)
RC4WD BFGoodrich Mud Terrain KM 1.9" Scale Tires (Z-T0225)
RC4WD Center Line 1.55" Scorpion Deep Dish Wheels (Z-W0014)
RC4WD XD 1.7" XD849 Grenade 2 Deep Dish Beadlock Wheels (Z-W0041)
RC4WD Warn 1.7" Epic Jack Hammer Wheels (Z-W0086)
RC4WD Ballistic Off Road Morax 1.7" Beadlock Wheels (Z-W0118)
RC4WD Enforcer 1.9" Beadlock Wheels (Z-W0122)
RC4WD Fuel Off-Road Maverick 1.9" Beadlock Wheels (Z-W0200)
RC4WD Benchmark 1.7" Beadlock Wheels (Z-W0266)
RC4WD 1911 1.9'' Beadlock Wheels (Z-W0274)
RC4WD Raceline Combat 1.55" Beadlock Wheels (Z-W0292)
Dual Exhaust for RC4WD Chevrolet Blazer and K10 (VVV-C0004)
Exhaust for RC4WD Chevrolet Blazer and K10 (VVV-C0005)
Front Inner Fender Set for RC4WD Chevrolet Blazer and K10 (VVV-C1472)

Instruction Manuals:

Click here to download

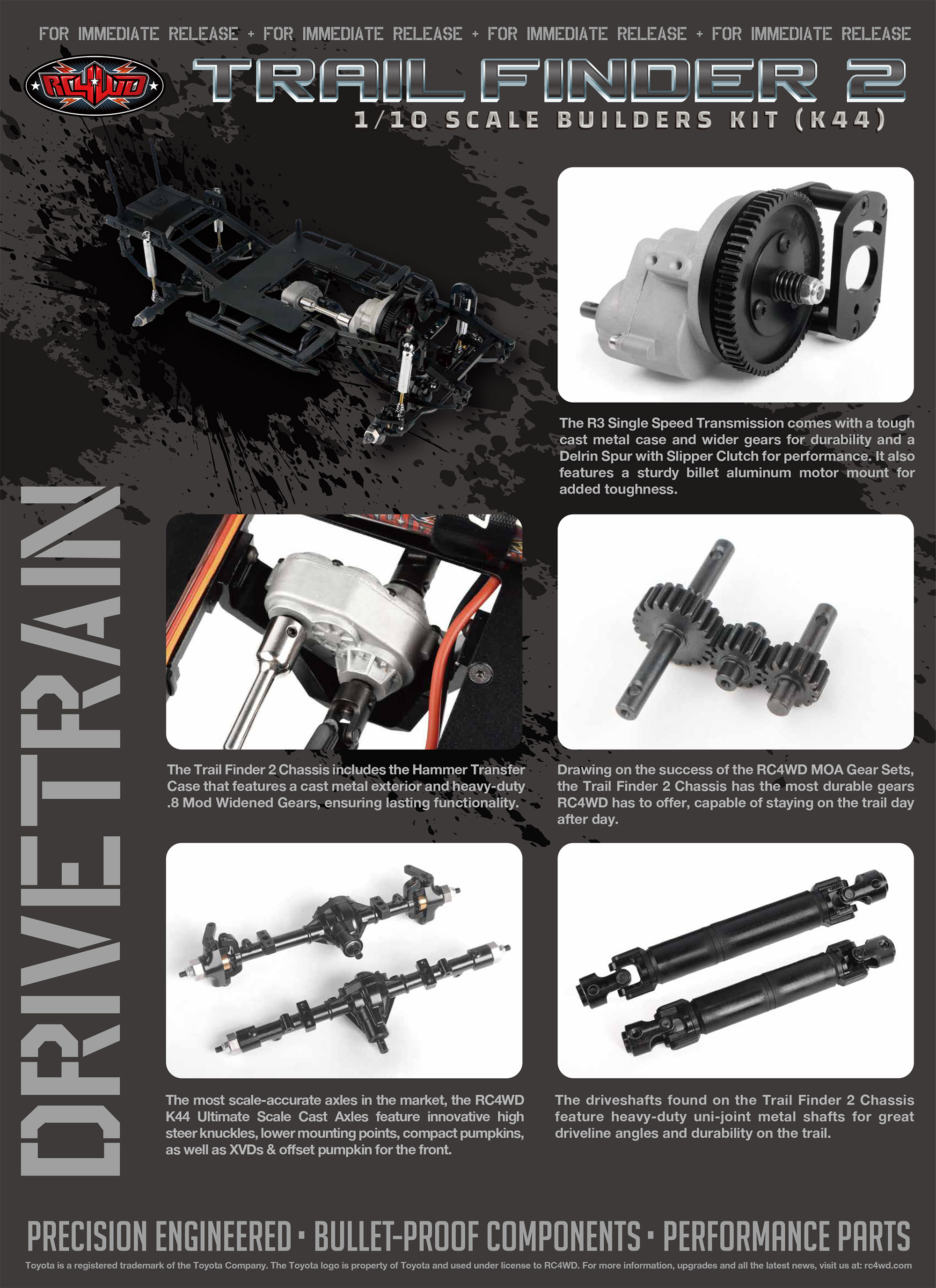

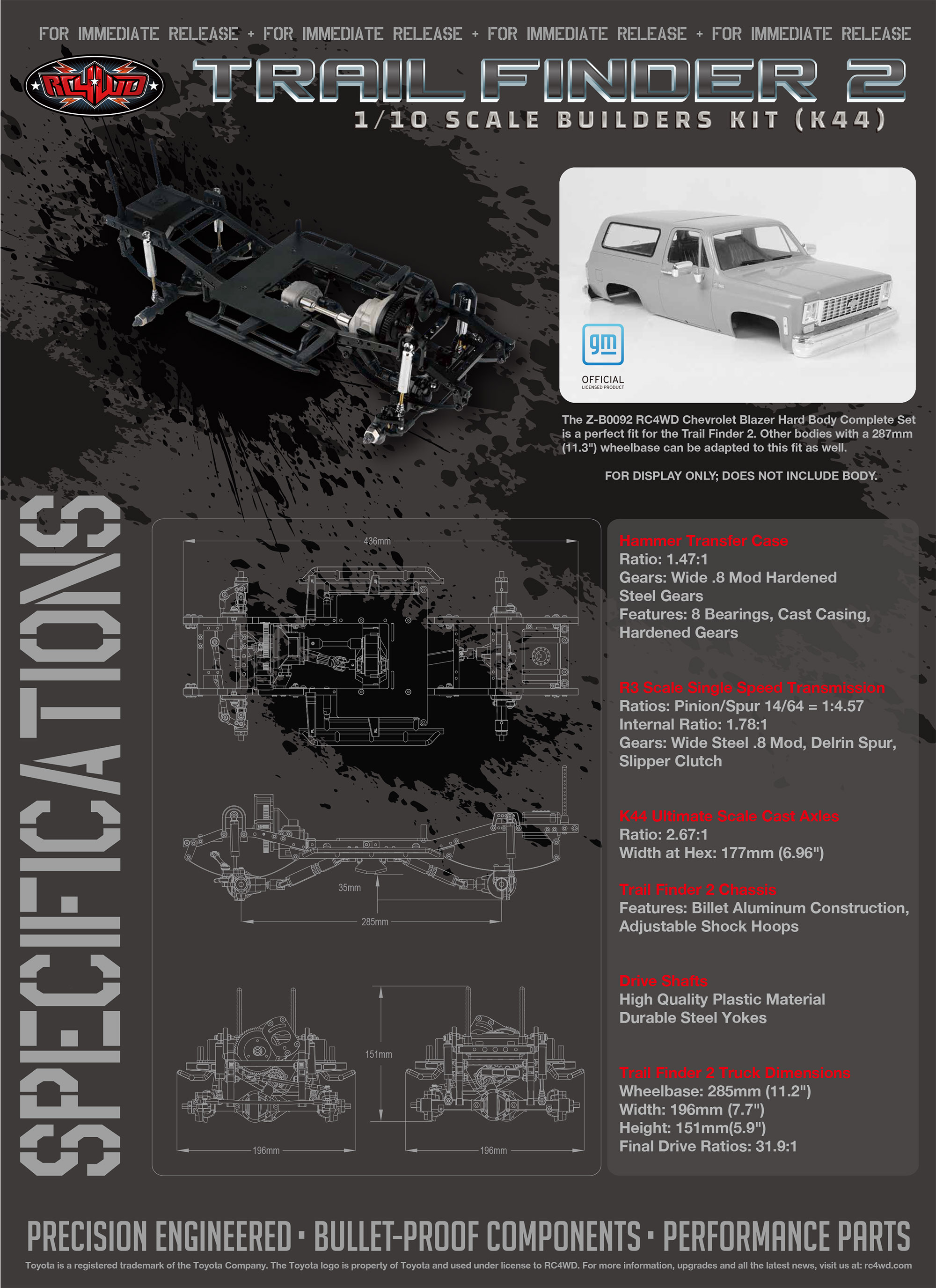

Press Information:

Click here to download

Notes:

While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
Use good quality hex drivers to avoid stripping screw heads.
Use thread lock sparingly.
Do not over tighten screws, otherwise you may strip the thread.
Click the link to visit the "Leaf Spring Over/Under Conversion" blog page.
