Kick off your adventure with the Gelande II Scale Builders Kit!
Built
for off-road performance, the Gelande II features an aluminum ladder
frame chassis, updated R3 Single-Speed Transmission, and Yota II V2
axles with our new XVD technology!
The front
axle now comes with improved screw engagement that maximizes steering
precision and improves sturdiness. 4-link rear and 3-link pan-hard bar
suspensions provide smooth handling and D-80 shocks with our new X-Ring
tech and Titanium Nitride Coated Shafts provide a new level of durable
impact control.
Customize it to suit your
style, whether as a rock crawler or expedition vehicle, without
compromising performance. With cast metal axles, stamped steel
beadlocks, Scrambler tires, and a chassis-mounted steering servo,sheet.
Build your ultimate off-road rig today!
Realistic Billet Aluminum Ladder Frame Chassis
Plastic Punisher Shaft V2
R3 Scale Single Speed Transmission
Center Mounted Realistic 4x4 Transfer Case
Yota II Ultimate Scale Cast Axle V2 (XVD)
6 Lug Wagon 1.9" Steel Stamped Beadlock Wheels
Scrambler Offroad 1.9" Scale Tires
Dual Spring 80mm Scale Black Shocks (VER 3)
Cruiser Body Conversion Kit For G2 Builder Kit
Chassis Mounted Steering Servo
Plastic Fuel Cell Receiver Box
Hammer Transfer Case
Ratio: 1.47:1
Gears: Wide .8 Mod Hardened Steel Gears
Features: 8 Bearings, Cast Casing, Hardened Gears
R3 Scale Single Speed Transmission
Ratios: Pinion/Spur 14/64 = 1:4.57
Internal Ratio: 1.78:1
Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch
Yota II Ultimate Scale Cast Axles
Ratio: 15/40 = 2.67:1
Width at Hex: 178.2mm
Gelande II Suspension
Double Triangulated 4 Link Rear Suspension. 3 Link Front Suspension with Panhard Bar
Shock Absorbers
Dual Spring 80mm Shocks - Can be oil filled
Wheels
Type: 6 Lug Wagon 1.9" Steel Stamped Beadlock Wheels (Chrome)
Hub: Pin Type Width: 25mm (0.98")
Outer Diameter: 48.26mm (2.09")
Tires
Type: Scrambler Offroad 1.9" Scale Tires
Outer Diameter: 104mm (4.09")
Width: 43mm (1.69")
Inner Diameter: 46mm (1.81")
Gelande II Truck Dimensions
Length: 18.31in / 465mm
Width: 8.66in / 220mm
Height: 10.24in / 260mm
Ground Clearance: 1.97in / 50mm
Final Drive Ratio: 31.9:1
DRIVETRAIN
The R3 Single Speed Transmission comes with a tough
cast metal case and wider gears for durability and a Delrin Spur with
Slipper Clutch for performance. It also features a sturdy billet
aluminum motor mount for added toughness.
The Gelande II includes the new Hammer Transfer Case. Packed with scale
detail, the Hammer features a cast metal exterior and heavy-duty .8 Mod
widened gears for durability.
Drawing on the success of the RC4WD MOA Gear Sets, the Gelande II
drivetrain has the most durable gears RC4WD has to offer, capable of
staying on the trail day after day.
The most scale-accurate axles on the market, the RC4WD Yota II
Ultimate Scale Cast Axles (XVD) feature innovative 8-degree round
knuckles, unique removable diff covers, lower mounting points, and a
compact offset pumpkin in the front.
The driveshafts on the Gelande II Chassis feature
heavy-duty uni-joint metal shafts for great driveline angles and
durability on the trail.
SUSPENSION
The Gelande II Chassis features a molded fuel cell that doubles as an
electronics storage box plus an aluminum, frame-mounted under-cab
electronics tray for multiple electronics mounting options. Also
includes a sturdy battery tray with strap mounts.
The Gelande II comes with a new set of RC4WD Dual Spring Shocks. This
fresh design offers a shock that looks true to life and performs at the
highest level. These shocks are made from solid aluminum, feature dual
springs, and can be taken apart and put back together. They include our
latest X-Ring technology and shafts coated with Titanium Nitride,
delivering long-lasting impact control that's a step above the rest.
The all-new Gelande II Chassis is a machined billet aluminum ladder
frame with an all-link suspension design, scale shock hoops, chassis
servo mounts, and hard body mounting points for the ultimate in
strength.
Included are a set of 6 Lug Wagon 1.9" Steel Stamped Beadlock Wheels
(Chrome) with scale wheel hubs! The wheels are made from stamped steel
and have a smooth silver finish for added detail.
This Gelande II kit comes with a set of Scrambler Offroad 1.9" Scale
Tires that deliver the perfect amount of traction with its advanced X2SS
soft and sticky compound. The scale details complete the look in just
the right size.
DETAILS
The Gelande II features the Cruiser Scale Body Set. The Cruiser
body has an awesome appointment of scale details, including mirrors,
door handles, vents, and a grill to match the 1:1 vehicle.
The
unmistakable lines of a classic. The Cruiser Body Set is a replica of
the full-scale vehicle, right down to the removable top! No other scale
body comes this close to realism.
The Cruiser
Body Set comes in durable hard plastic molded in a paintable gray
finish, perfect for custom paint. All the trim parts are separate pieces
to get a great look with minimal fuss.
Comprised
of over 70 parts, the Cruiser Body Set features a fully detailed
interior, seats, gear shifter, handbrake, and detailed dashboard. It's
all here to bring your build to the next level.
The
crisp lines and subtle details are captured. A metal grill insert is
included, as well as detail lenses for all signal lights. All lamps can
be illuminated with modification.

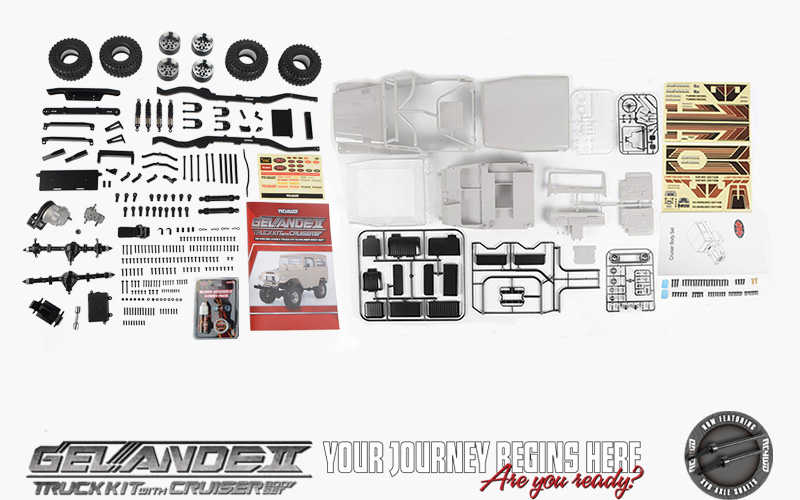

What's Included:
- 1x RC4WD Gelande II Truck Kit w/Cruiser Body Set
This is a kit that requires building time (appro. 2-3 hours) and electronics
Required to Complete:
Truck Kit
- Hex Drivers (1.5mm, 2mm, 2.5mm)
- Long Nose Pliers
- Associated Thread Locking Adhesive
- Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)
Body Kit
- Modeling / Craft Knife
- Long Nose Pliers
- Side Cutters
- Instant Glue / Plastic Solvent / ShoeGoo / E6000 / 2-part Epoxy
- Hex Drivers (1.5mm, 2mm)
- Cross Phillips Screwdriver (Small)
Electronics
Replacements Parts:
Optional Parts:
Instruction Manuals:
Press Information:
Notes:
- While
some components may come assembled, we always recommend that you check
the products to ensure all hardware is tight. In some cases, you may
want to apply thread lock to some of the hardware that is already
installed.
- Use good quality hex drivers to avoid stripping screw heads.
- Use thread lock when putting metal screws into metal parts.
- Steps marked with an asterisk (*) require thread lock.
- Use thread lock sparingly.
- Do not over tighten screws otherwise you may strip the thread.
