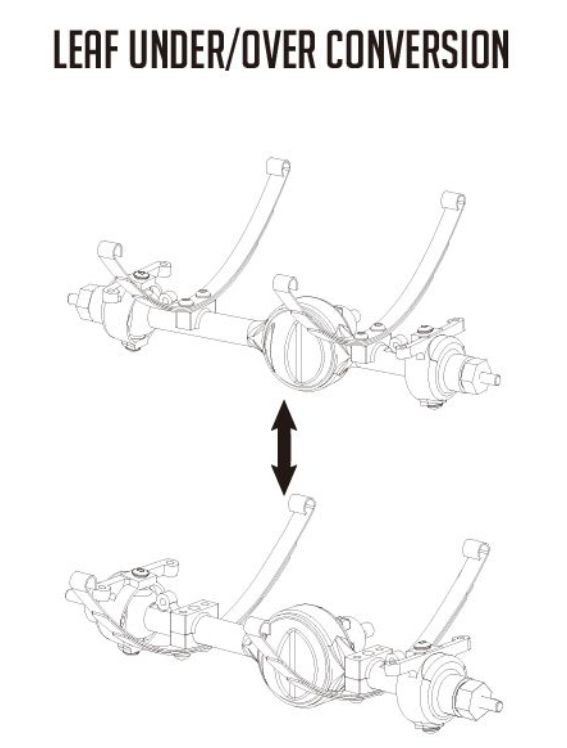

Leaf Spring Over/Under Conversion This guide outlines the information and required parts to convert your Trail Finder 2 into a leaf under or leaf over suspension configuration using the Yota II Ultimate Scale Cast Axle V2. |
With the new V2 update, Yota 2 axles now support both leaf-over and leaf-under spring mounting. This added versatility lets you dial in your Trail Finder 2 for a sleek street stance or a lifted, trail-ready setup. |
Although we’ve tried to cover every possible setup, this guide may not include every configuration. Our product line has grown and evolved over the years, and occasionally some details may become outdated or missed. If you have questions that aren’t answered here, please don’t hesitate to reach out to our customer support team, and they’ll do their best to help.
— The RC4WD Team |
| Click here for the Manual |
 |
PARTS FOR LEAF UNDER
Z-S0149 RC4WD Plastic Punisher Shaft V2 (98mm-103mm / 3.86" - 4.06") 5mm Hole Z-S0194 RC4WD 120mm Hardened Steering Link (FOA) Z-S0656 Steel Button Head Cap Screws M3 x 16mm (10) Z-S2135 Leaf Under Mounts for Yota 2 / K44 Axles 60mm shock of your choice 80mm shock of your choice
PARTS FOR LEAF OVER
Z-S0504 RC4WD 101mm Hardened Steering Link Z-S0653 Steel Button Head Cap Screws M3 x 10mm (10) Z-S2020 RC4WD Plastic Punisher Shaft V2 (102mm-110mm / 4.02" - 4.33") 5mm Hole 70mm shock of your choice 90mm shock of your choice
NOTES: TRAIL FINDER 2 SWB
OPTIONAL SHOCKS
Z-D0016 RC4WD Bilstein B6 4600 Series Shock Absorbers (60mm) Z-D0021 RC4WD Bilstein B6 4600 Series Shock Absorbers (70mm) Z-D0022 RC4WD Superlift Superide Scale Shock Absorbers 70mm Z-D0024 RC4WD Superlift Superide Scale Shock Absorbers 80mm Z-D0028 RC4WD Superlift Superide Scale Shock Absorbers 90mm Z-D0034 RC4WD 70mm Old Man Emu Nitrocharger Sport Shocks by ARB Z-D0036 RC4WD 80mm Old Man Emu Nitrocharger Sport Shocks by ARB Z-D0038 RC4WD 90mm Old Man Emu Nitrocharger Sport Shocks by ARB Z-D0044 RC4WD Bilstein B6 4600 Series Shock Absorbers (80mm) Z-D0046 RC4WD Bilstein B6 4600 Series Shock Absorbers (90mm) Z-D0056 RC4WD Bilstein SZ Series Shock Absorbers (60mm) Z-D0057 RC4WD Bilstein SZ Series Shock Absorbers (70mm) Z-D0058 RC4WD Bilstein SZ Series Shock Absorbers (80mm) Z-D0059 RC4WD Bilstein SZ Series Shock Absorbers (90mm) Z-D0077 RC4WD Rancho RS9000 XL Shock Absorbers 80mm Z-D0078 RC4WD Rancho RS9000 XL Shock Absorbers 90mm Z-D0086 RC4WD Ultimate Scale Shocks 60mm Z-D0087 RC4WD Ultimate Scale Shocks 70mm Z-D0088 RC4WD Ultimate Scale Shocks 80mm Z-D0089 RC4WD Ultimate Scale Shocks 90mm
|
|
|
|
|
