Stamped Steel 1.7" Beadlock Wagon Wheels

Stamped Steel 1.7" Beadlock Wagon Wheels

Your Price:$59.99
Retail Price:$73.79
Your Savings:$13.80(19%)
Out of Stock
Part Number:Z-W0124

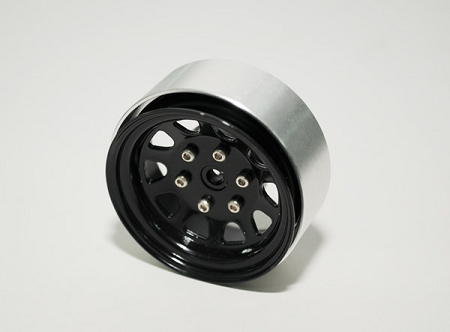

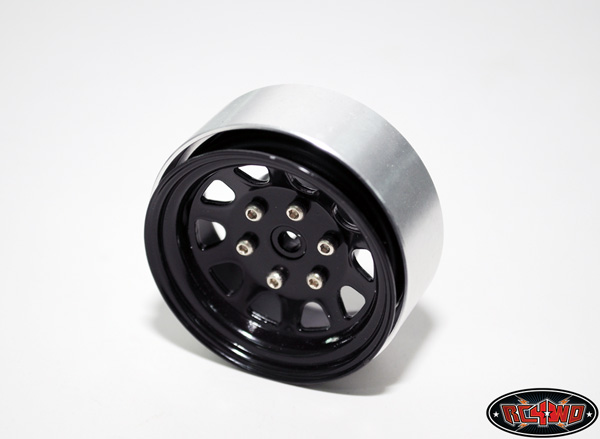

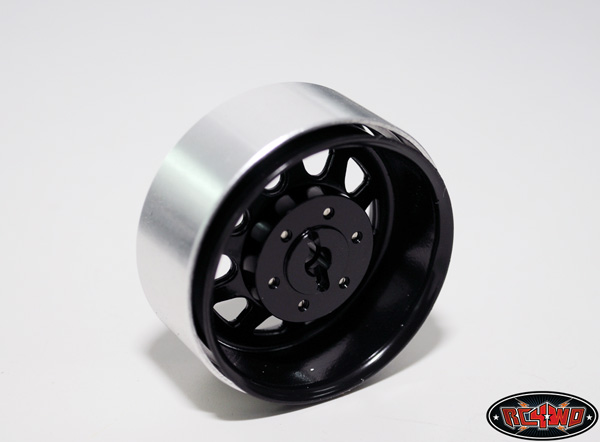

Stamped Steel 1.7" Beadlock Wagon Wheels

New Style Wheel design for the new wheel size offering from RC4WD.

 http://www.beadlok.com/product/images/33MM/4WD_4516.jpg

Specifications:

  • Pin mount (fits most Axles)
  • Fit 1.7" size tires Powder Coated in black
  • OD: 48.18mm
  • Wheel Width: 0.87inch / 22.2mm
  • Backspacing: 0.602inch / 15.30mm
  • Negative Offset: 0.29inch / 7.5mm
  • Each Wheel Weighs: 1.65oz / 47g

http://www.beadlok.com/product/images/33MM/4WD_4519.jpg

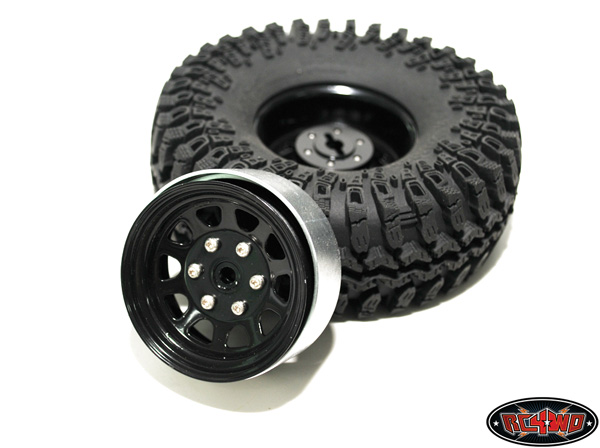

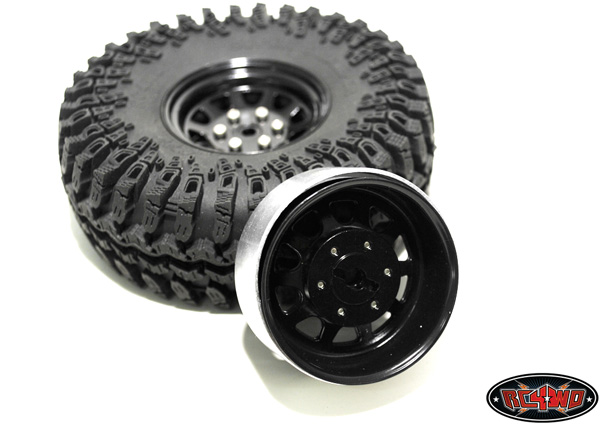

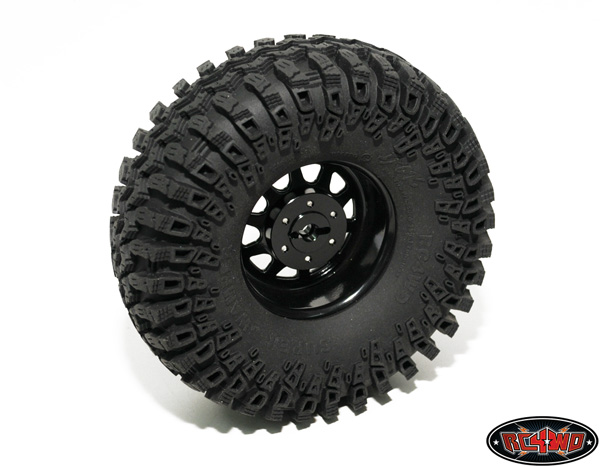

Shown below installed with the RC4WD Interco 1.7" IROK tire (Z-T0068) for example (Not Included)

http://www.beadlok.com/product/images/33MM/4WD_4514.jpg

Shown installed with  RC4WD Interco IROK 1.7" Scale Tire (Z-T0068) and RC4WD Gelande II Truck Kit w/Cruiser Body Set (Z-K0051) for example (Not Included)


What's Included:

  • 4x Stamped Steel 1.7" Beadlock Wagon Wheels
  • 2x M2x16mm SHCS

Replacement Hardware:

  • 24x M2 x 6mm SHCS (Silver) (Z-S0994)

Optional Offset Hexes

  • This product will fit Optional Hubs (Z-S0737), but you will need RC4WD 12mm Axle Wheel Hexes (Z-S0239)

Instructions:


Notes:

  • Replacement hardware is Z-S0476
  • Due to many different methods to design Tires and Wheels, we have no control over other manufacturers products. So we can only tell you that RC4WD Tires and Wheels work together. In some cases our Wheels and Tires will work with other brand Wheels and Tires, but we can not guarantee the outcome.
  • We have included 2x M2.5 x 16mm screws to aid in installing the tires on the wheels. With the longer screws this will allows easier installation.
Click here to download the RC4WD full wheel comparison list.
