Boyer 1/10 Scale Truggy Kit
Part Number Z-K0029
Boyer 1/10 Scale Truggy Kit
Email a friend Email a friend
Price
Retail Price:  $799.99
Your Savings:  $200.00
Your Price:
$599.99
Availability:
Out of Stock
Share |
Description

Boyer 1/10 Scale Truggy Kit


http://rockycountry.com/product/Logos/rc4wd_disco_banner_dark.png

The Boyer Truggy is extremely versatile so you can set it up any way you like. Different bodies, different size/length shocks, adjustable wheelbase, adjustable frame mounted servo, adjustable rock sliders and adjustable front brush guard. Plus it has pre-drilled holes for mounting the winch on the bumper. The rock sliders are threaded so they can slide in and out to adjust to the width of the body. They are also offset so when you switch them side to side then that allows you to run the regular cab bodies like the Hilux. When you switch them side to side the rock sliders will sit further back on the chassis.

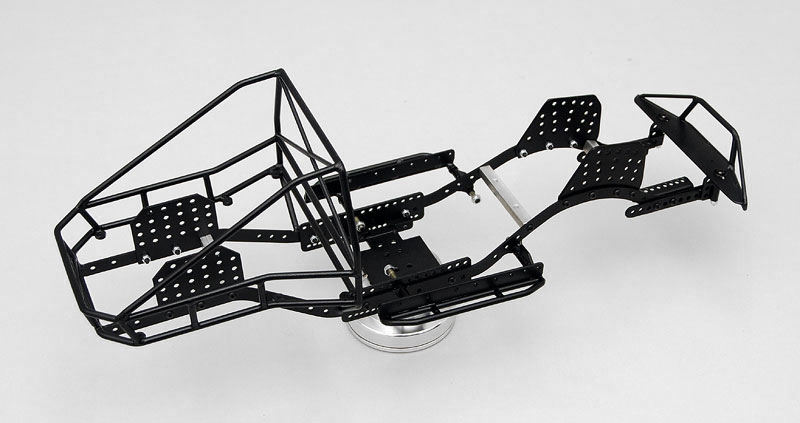

Chassis main features:

  • Adjustable wheelbase
  • Multiple shock mounting options
  • Adjustable frame mounted servo ...adjusts front to rear and up/down
  • Adjustable rock sliders. Adjust in/out and front to back to fit any body.
  • Flat plates welded on, allows you to use them to mount the body to the rock sliders.
  • Tabs on bottom of bed to bolt a floor panel in.
  • Front bumper that can be adjusted front to rear and up/down with a plate to mount a winch.
  • Scale rail chassis

Specifications:

  • Tube welded chassis
  • Black powder coated
  • T-Rex plastic axles
  • Gear Ratio: XX:1
  • Rock Crusher 1.9 Tires with X3 compound (108mm/4.25inch tall)
  • Dual spring billet shocks
  • OEM Steel plated 1.9 wheels
  • Spare wheels & tire included
  • Full ball bearings
  • Bulldog 9500XT metal winch
  • Length: 19.21inch/488mm, Width: 3.22inch/82mm, Height: 8.66inch/220mm , Wheelbase: 11.57inch/294mm, Center ground clearance: 2.99inch/76mm
  • Engineered by John Boyer in Pennsylvania, USA

Boyer Truggy is the first that comes equipped with a functional winch:









Installed with Tundra body:



Installed with Hilux body:



Installed with F-350 body:



A Customers Boyer Kit



Custom built Boyer Kit


What's Included:

  • 1x RC4WD 1/10 Boyer Truggy Kit
  • 1x Bulldog 9500XT Winch

Required to Complete:

Electronics



Important Note:

  • This truck kit is designed to fit Tamiya Hilux, F350, Tundra body or other lexan type of bodies.
  • This truck will require 1-2 hours of build time.
  • This is a pre-built crawler, changing tire or wheel type is not possible.
  • This kit does not have a battery tray. You will need to mount your chosen battery pack.

Instruction Manual:

  • Not available yet....

International customers (Non US)

  • If you plan to order this kit, make sure you choose EMS as shipping method.

Optional Parts:

  • ARB Diff cover (Part # Z-S0220)
  • Chrome diff cover (Part # Z-S0406 )
  • Aluminum Steering knuckles (Part # Z-S0569 )
  • XVD Axle (Part # Z-S0092)
  • Ultra Scale Hardened Steel Driveshafts "Ver 2" (3.15"/4.33"-80mm/110mm) (VVV-S0120)
  • Ballistic Fabrication Dual Spring w/Faux Piggyback 100mm (Z-D0059)
  • Ballistic Fabrication Dual Spring w/Faux Piggyback 100mm (Black) (Z-D0060)
  • Ballistic Fabriction Dual Spring w/Faux Piggyback 90mm (Z-D0057)

Front

  • Billet Front Axle Case (Part # Z-A0050)
  • The Ultimate Scale Shocks 90mm (Silver) Z-D0001
  • The Ultimate Scale Shocks 90mm (Black) Z-D0009
  • King Off-Road Scale Piggyback Shocks w/Faux Reservoir (100mm) Z-D0031
  • RC4WD Superlift Superide 100mm Scale Shock Absorbers Z-D0032


Rear

  • Billet Rear Axle Case (Part # Z-A0051
  • The Ultimate Scale Shocks 90mm (Silver) Z-D0001
  • The Ultimate Scale Shocks 90mm (Black) Z-D0009
  • King Off-Road Scale Piggyback Shocks w/Faux Reservoir (100mm) Z-D0031
  • RC4WD Superlift Superide 100mm Scale Shock Absorbers Z-D0032
